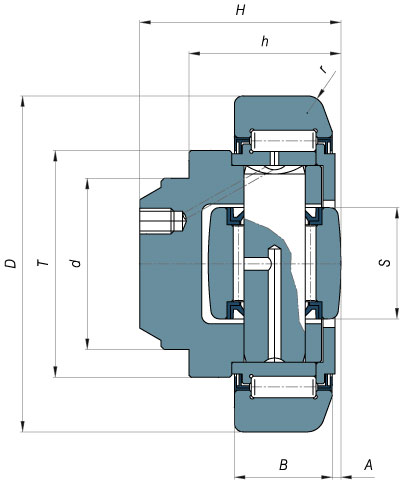

Technical Drawing

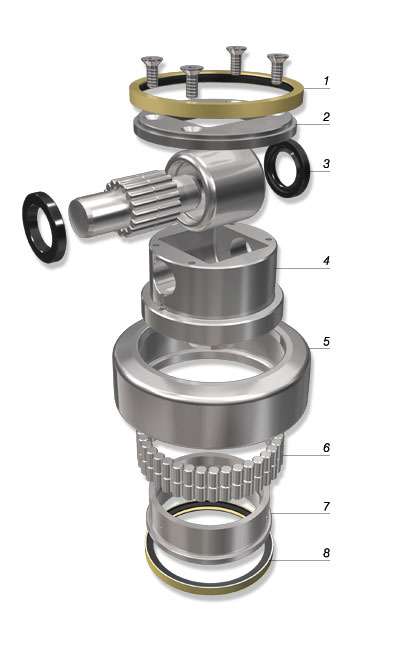

Exploded View
Fixed combined bearings
C.R. Ref.
400-
400-
400-
400-
400-
400-
400-
400-
400-
400-
400-
d
mm
30
30
35
40
45
60
60
60
60
80
80
T
mm
40
42
48
53
59
71
80
108
108
120
120
D
mm
52,5
62
70,1
77,7
88,4
107,7
123
149
149
174
185
H
mm
33
37,5
44
48
57
69
72,3
78,5
86
95
95
h
mm
27
30,5
36
36,5
44
55
56
58,5
67
71
71
B
mm
17
20
23
23
30
31
37
45
45
55
55
A
mm
5
2,5
2,5
3
3,5
4
5
5,5
5,5
7
7
S
mm
15
20
22
24
26
34
40
50
50
63
63
r
mm
2
3
4
4
3
5
5
3
3
7
7
C
KN
24,8
39
55,5
58,4
83,8
94,2
128
172,3
172,3
265
265
Co
KN
34,5
65,2
91,7
100
132,3
160,7
226,8
325,9
325,9
488
488
Ca
KN
9,2
14,4
17,6
23,2
27,7
38,6
53
133,3
133,3
205,3
205,3
Coa
KN
11,7
21
25
35,8
42
65,2
92
244
244
381
381
Ø on request
mm
*
62,5
70,7 / 70,4
78,1 / 78,5
88,9
108,2/108,5
*
*
*
*
*
Profile
EC 053
2890
2867
2810
2811
2862
2891
2757
2757
*
*
ZRS seal system, realized by C.R. during the recent years, prevents outer agents, such as dust, wet and mill scale, to enter the inner part of the bearing, and at the same time it prevents the leakage of lubrication grease.
The lateral thrust cover is made in case-
The central pivot is made in low carbon C20/C45 steel, which guarantees high resistance and is highly suitable for welding.
Fixed combined bearings have the following technical characteristics:
Outer ring and axial little roll are manufactured in case-
This kind of steel guarantees a very good resistance to stress, and assures a very
good resistance against crashes. The surface hardness can reach 60-
Inner ring and pin are manufactured in core-
THE BEARINGS ARE IN ZRS EXECUTION
400-
C: Dynamic load
Co: Static load
Ca: Dynamic axial load
Coa: Static axial load
Technical Characteristics
Fixed combined bearings are particularly suitable to be used in forklift masts and in any other moving and handling system, where rolled or extruded profiles are used.
The best combination axial part/radial part allows to get high load capacity with extremely small dimensions of the bearing, in addition to easiness of assembling on any kind of structure.
1. ZRS seal ring
2. Support thrust ring
3. Axial part
4. Pivot
5. Outer ring
6. Cylindrical rollers
7. Inner ring
8. ZRS seal ring
