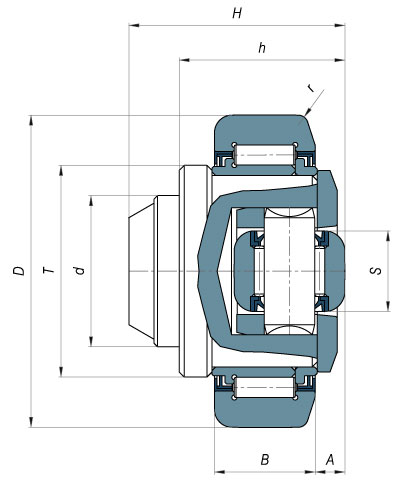

Technical Drawing

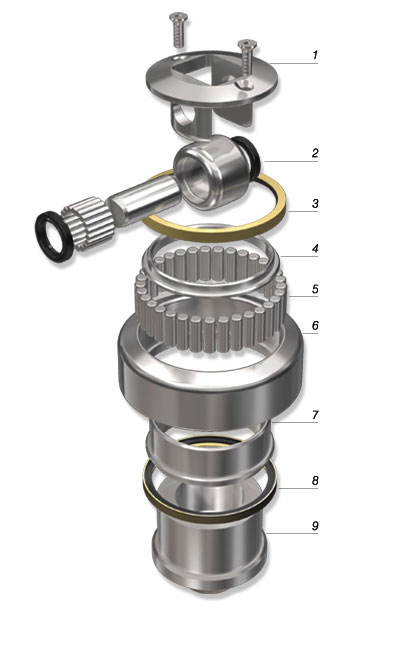

Exploded View
Adjustable combined bearings have the same characteristics as fixed combined bearings.
The only difference is the possibility to adjust the distance between bearing and profile through the use of washers.
1. Support
2. Axial part
3. ZRS seal ring
4. Support thrust ring
5. Cylindrical rollers
C.R. Ref.
400-
400-
400-
400-
400-
400-
400-
T
mm
42
48
53
59
71
80
103
D
mm
62
70,1
77,7
88,4
107,7
123
149
H
mm
43
48
51
61
73
75,8
89
h
mm
33
40
39,5
48
59
59,5
69
B
mm
20
23
23
30
31
37
45
A
mm
5,5
6,5
7
7
8
8
15
S
mm
16
16
21
21
33
33
50
r
mm
3
4
4
3
5
5
5
C
KN
39
55,5
58,4
83,8
94,2
128
172,3
Co
KN
65,2
91,7
100
132,3
160,7
226,8
325,9
Ca
KN
5,8
5,8
13,2
13,2
25
25
83
Coa
KN
6
6
14,5
14,5
28
28
130
Ø on request
mm
62,5
70,7 / 70,4
78,1 / 78,5
88,9
108,2 / 108,5
*
*
Profile
2890
2867
2810
2811
2862
2891
2757
ZRS seal system, realized by C.R. during the recent years, prevents outer agents, such as dust, wet and mill scale, to enter the inner part of the bearing, and at the same time it prevents the leakage of lubrication grease.
The lateral thrust cover is made in case-
The central pivot is made in low carbon C20/C45 steel, which guarantees high resistance and is highly suitable for welding.
The support roll, which allows the adjusting of the axial clearance between profile and bearing through washers of 0,3 to 0,5 mm, is manufactured in 20 CrMo steel.
Adjustable combined bearings have the following technical characteristics:
The outer ring and the axial little roll are manufactured in case-
This kind of steel guarantees a very good resistance to stress, and assures a very
good resistance against crashes. The surface hardness can reach 60-
Inner ring and pin are manufactured in core-
THE BEARINGS ARE IN ZRS EXECUTION
The adjusting of dimension “A” is made through washer rings put between the main support roll and the support roll
of the lateral guide bearing. Adjusting washers are available with thickness 0,3-
C: Dynamic load
Co: Static load
Ca: Dynamic axial load
Coa: Static axial load
Technical Characteristics
d
mm
30
35
40
45
60
60
60
Adjustable combined bearings
6. Outer ring
7. Inner ring
8. ZRS seal ring
9. Pivot
