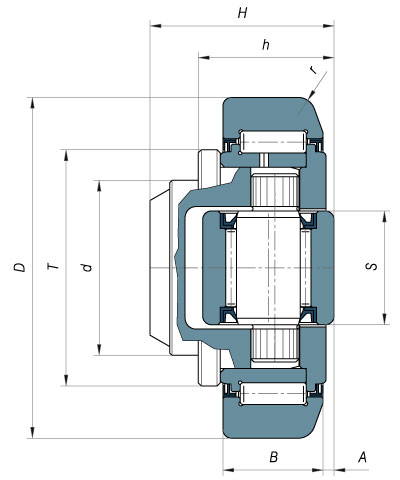

Technical Drawing

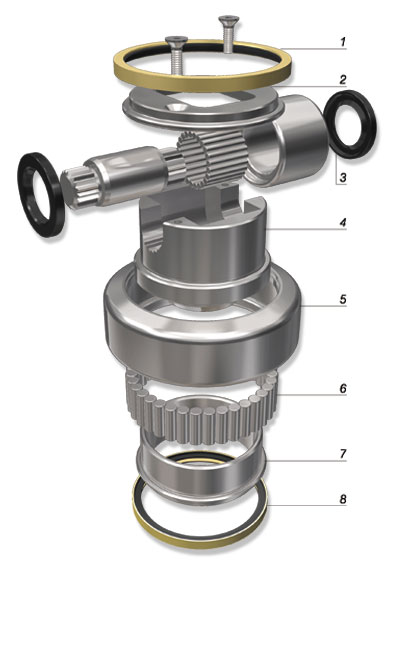

Exploded View
ZRS seal system, realized by C.R. during the recent years, prevents outer agents, such as dust, wet and mill scale, to enter the inner part of the bearing, and at the same time it prevents the leakage of lubrication grease.
The thrust cover is manufactured in case-
The central pivot is made in low carbon C20/C45 steel, which guarantees high resistance and is highly suitable for welding.
Adjustable combined bearings with eccentric pin have the following technical characteristics:
The outer ring and the axial little roll are manufactured in case-
This kind of steel guarantees a very good resistance to stress, and assures a very
good resistance against crashes. The surface hardness can reach 60-
Inner ring and pin are manufactured in core-
Technical Characteristics
Adjustable combined bearings with eccentric pin
Adjustable combined bearings with eccentric pin have the same characteristics as adjustable combined bearings.
In this case, the adjusting of the distance is made through the rotation of the whole axial part (pin and little roll) in the central pivot.
THE BEARINGS ARE IN ZRS EXECUTION
The adjusting of dimension “A” can be made through the rotation of the axial pivot.
* “JUMBO” EXECUTION
C.R. Ref.
400-
400-
400-
400-
400-
400-
400-
T
mm
42
48
54
59
69
80
108
Ca
KN
16
16
23
23
32
41
41
Coa
KN
25
25
36
36
50
72
72
Profile
2890
2867
2810
2811
2862
2891
2757
d
mm
30
35
40
45
60
60
60
H
mm
37,5
44
48
57
69
72,3
78,5
D
mm
62
70,1
77,7
88,4
107,7
123
149
B
mm
20
23
23
30
31
37
45
h min.
mm
30,5
36
37
44
55
56
58,5
A
mm
4
4
3,5
4
4
4,5
6
S
mm
20
20
26
26
30
34
34
r
mm
3
4
4
4
5
5
3
C
KN
31
45,5
48
68
81
110
151
Co
KN
35,5
51
56,8
72
95
132
192
1. ZRS seal ring
2. Support thrust ring
3. Axial part
4. Pivot
5. Outer ring
6. Cylindrical rollers
7. Inner ring
8. ZRS seal ring
C: Dynamic load
Co: Static load
Ca: Dynamic axial load
Coa: Static axial load
