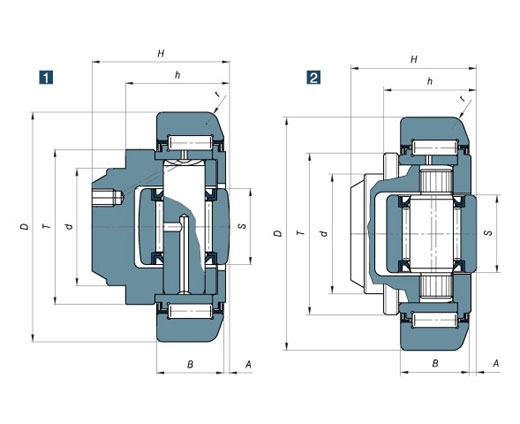

Technical Drawing
Exploded View
Precision combined bearings have the same technical characteristics as fixed combined bearings and adjustable combined bearings with eccentric pin.
THE BEARINGS ARE IN ZRS EXECUTION
* DR400-
Technical Characteristics
Precision combined bearings
Precision combined bearings maintain the same characteristics as the previous series. They are manufactured with a wider diameter than the standard ones, because they are used in machined profiles.
The very precise coupling between profile and bearing represents a very good and economic solution in comparison to linear guides. These bearings are being used in alternative to the linear guides more often.
C.R. Ref.
DR 400-
DR 400-
DR 400-
DR 400-
* DR 400-
DR 400-
* DR 400-
DR 400-
* DR 400-
DR 400-
* DR 400-
DR 400-
* DR 400-
DR 400-
T
mm.
42
42
48
48
54
54
59
59
71
69
80
80
103
108
Ca
KN
11
11
13
11
18
18
23
23
31
25
43
31
68
31
Coa
KN
11
11
14
11
18
18
23
23
36
27
50
36
71
36
Profile
EC 065 L
EC 065 L
EC 074 L
EC 074 L
EC 082 L
EC 082 L
EC 093 L
EC 093 L
EC 112 L
EC 112 L
EC 128 L
EC 128 L
EC 154 L
EC 154 L
Ref.
1
2
1
2
1
2
1
2
1
2
1
2
1
2
d
mm
30
30
35
35
40
40
45
45
60
60
60
60
60
60
H
mm.
37,5
37,5
44
44
48
48
57
57
69
69
72,3
72,3
78,5
78,5
D
mm.
64,8
64,8
73,8
73,8
81,8
81,8
92,8
92,8
111,8
111,8
127,8
127,8
153,8
153,8
B
mm.
20
20
23
23
23
23
30
30
31
31
37
37
43
45
h min./max.
mm.
30,5
30,5 -
36
36 -
36,5
37 -
44
44 -
55
55 -
56
56 -
58,5
58,5 -
A
mm.
2,5
4
2,5
4
3
3,5
3,5
4
4
4
5
5
5,5
6
S
mm.
20
20
22
20
26
26
26
26
34
30
40
34
50
34
r
mm.
3
3
4
4
4
4
3
4
5
5
5
5
3
3
C
KN
31
31
45,5
45,5
48
48
68
68
81
81
110
110
151
151
Co
KN
35,5
35,5
51
51
56,8
56,8
72
72
95
95
132
132
192
192
1. ZRS seal ring
2. Support thrust ring
3. Axial part
4. Pivot
5. Outer ring
6. Cylindrical rollers
7. Inner ring
8. ZRS seal ring
C: Dynamic load
Co: Static load
Ca: Dynamic axial load
Coa: Static axial load
