Cardan joint bushings and washers
A threaded hole for greaser UNI 7663 can be executed on the bottom on request. Washers in Duretano with different dimensions can be supplied along with the bushings.
C.R. cardan joint bushings are manufactured in UNI 100Cr6/100CrMo7 core hardened
steel and reach hardness 60-

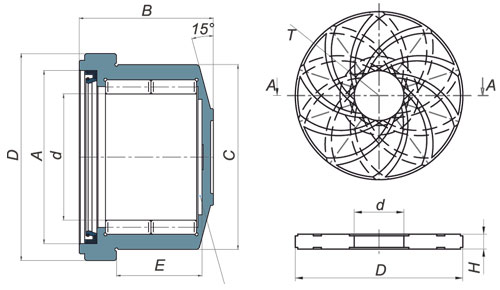

Technical Characteristics
Cardan joint bushings allow the coupling of two rotating shafts in order to transmit a stiff torque.
An adequate radial clearance prevents noise and vibrations during functioning.
C.R. Ref.
900-
900-
900-
900-
900-
900-
900-
900-
900-
900-
900-
900-
D
mm
84
92
105
122
135
147
174
174
192
220
243
263
d
mm
45,85
51,5
60,5
70
76,3
82,75
98,18
98,18
119,28
133,266
152,2
160,4
B
mm
60
70
76,5
84,8
96,5
102,5
113,5
113,5
124
140
162,5
171
A
mm
70
80
85
100
115
128
150
160
170
200
210
220
C
mm
74
83
95
110
120
130
154
154
170
195
220
235
Washer
800-
800-
800-
800-
800-
800-
800-
800-
800-
800-
800-
800-
E
mm
39,5
45,5
49,5
56
62
70,8
75,5
75,5
83,5
94
107
109
C.R. Ref.
800-
800-
800-
800-
800-
800-
800-
800-
800-
800-
800-
* The chamfer is not 15° but 38°
Cardan joint bushings
Washers
d
mm
18
18,5
19,5
20
22
27
27
27
27
27
27
D
mm
44,5
49,5
59
67,5
72
82
96
105
121
138
145
T
mm
20
20
21
24
24
30
30
30
30
30
30
H
mm
2,46 -
2,96 -
2,96 -
2,9 -
3,46 -
3,46 -
3,46 -
3,96 -
4,46 -
4,96 -
4,96 -

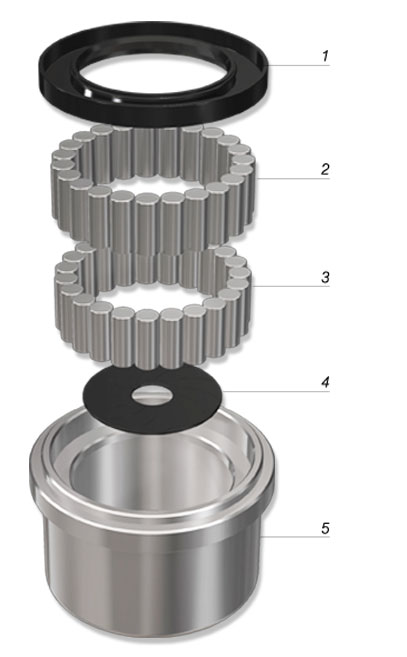

1. Seal “g” type
2. Cylindrical rollers
3. Cylindrical rollers
4. Washer in duretano
5. Bushing
C.R. s.r.l. -
