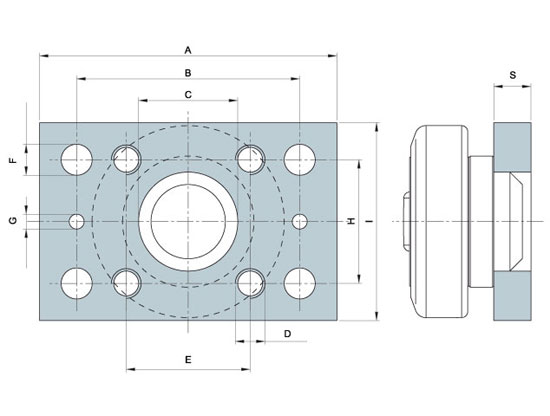

Technical Drawing

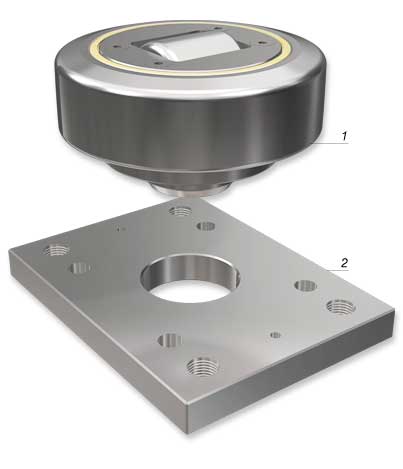

Exploded View
THE BEARINGS ARE IN ZRS EXECUTION.
* 400-
Combined bearings welded on plate
Plate
Ref.
8.0288
8.0276
8.0276
8.0277
8.0277
8.0278
8.0278
8.0279
8.0279
8.0280
8.0280
8.0280
8.0280
8.0281
8.0281
8.0281
H
mm
30
40
40
50
50
50
50
90
90
80
80
80
80
100
100
100
B
mm
70
80
80
90
90
90
90
90
90
140
140
140
140
160
160
160
A
mm
90
100
100
120
120
120
120
120
120
180
180
180
180
200
200
200
D
mm
M.8
M.10
M.10
M.12
M.12
M.12
M.12
M.16
M.16
M.16
M.16
M.16
M.16
M.16
M.16
M.16
C
mm
30
30
30
35
35
40
40
45
45
60
60
60
60
60
60
60
E
mm
40
40
40
50
50
50
50
90
90
80
80
80
80
100
100
100
F
mm
8,5
10,5
10,5
12,5
12,5
12,5
12,5
-
-
17
17
17
17
17
17
17
G
mm
6
6
6
6
6
6
6
-
-
6
6
6
6
6
6
6
I
mm
50
60
60
80
80
80
80
120
120
120
120
120
120
150
150
150
S
mm
10
10
10
15
15
15
15
20
20
20
20
20
20
20
20
20
Profile
EC053
2890
2890
2867
2867
2810
2810
2811
2811
2862
2862
2891
2891
2757
2757
2757
C.R. combined bearings are usually welded on plate.
This is an ideal solution because the bearing welded on plate is directly applied on the structure of the plant, with the big advantage that the assembling and disassembling operations are extremely fast and cheap.
The combined bearings on plate can be supplied in the fixed or adjustable execution.
1. Combiend bearing
2. Plate
Bearing
ref.
4.0053
4.0054
4.0072
4.0055
4.0073
4.0056
4.0074
4.0058
4.0076
4.0061
4.0078 / L
4.0062
4.0079
4.0063
4.0080
4.0011
Bearing ref.
+ plate
400-
400-
400-
400-
400-
* 400-
400-
* 400-
400-
* 400-
400-
* 400-
400-
* 400-
400-
* 400-
