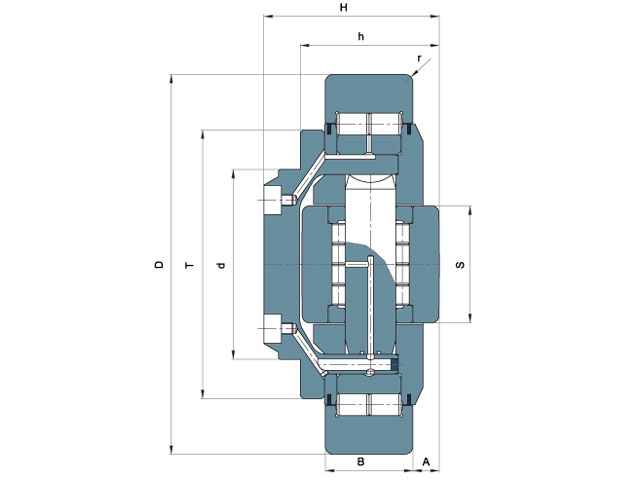

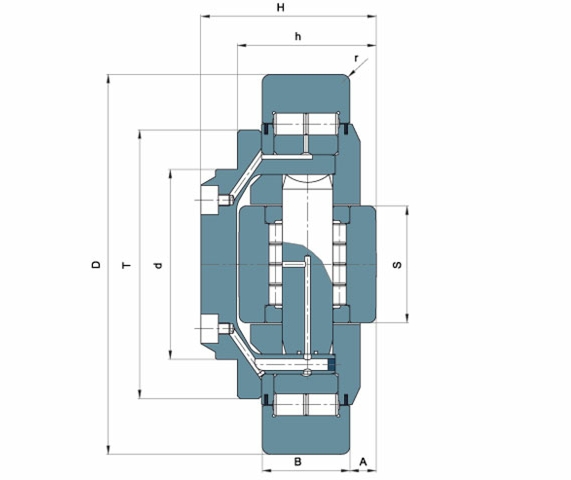

Technical Drawing

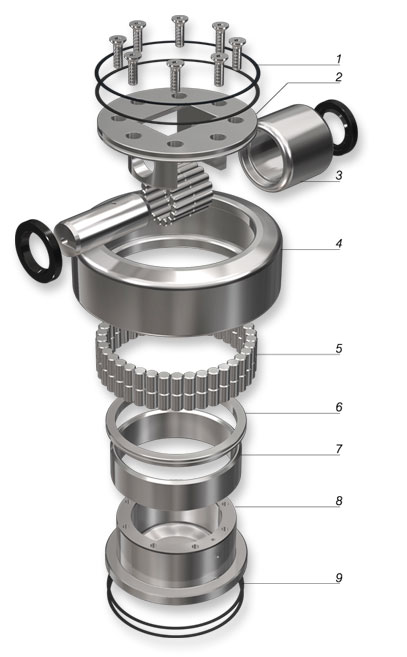

Exploded View
These bearings are normally supplied with seals in ZZ execution. They can also be manufactured in 2RS execution on request. All the bearings of this series are provided with a lubrication system both for the radial and the axial part.
The thrust ring is made of cementation steel.
The central pivot is made of 16CrNi4 cementation steel which guarantees a high resistance to stress and a good welding.
Adjustable combined bearings for heavy industry have the following features:
The outer ring and the axial little roll are made of the best possible 18NiCrMo5
cementation steel. The surface hardness is 60-
The inner ring and little pin are made of core hardened 100Cr6 with hardness 60+2 HRC.
THE BEARINGS ARE IN ZZ EXECUTION, THEY CAN BE EXECUTED IN 2RS ON REQUEST.
The adjusting of “A” size is made through washer rings put between the main support
roll and the lateral guide bearing. Adjusting washers with 0,3-
The bearings are supplied with lubrication holes.
Technical Characteristics
Adjustable combined bearings for heavy industry
C.R. Ref.
400-
400-
400-
400-
400-
400-
400-
400-
400-
Co
(KN)
361
440
719
1.000
1.300
1.272
1.690
1.690
2.535
C a
(KN)
83
83
103
167
167
195
227
227
227
Coa
(KN)
129
130
230
279
279
335
392
392
392
H
mm
109,7
100
115
120
135
140
240
150
200
D
mm
170
185
220
260
260
300
315
340
390
h
mm
84,7
75
90
95
110
110
120
120
150
B
mm
51
47
60
60
80
80
89
89
118
A
mm
11,2
15
13,5
18,5
10
10
10
10
11
S
mm
49,7
49,7
70
80
80
86
100
100
100
r
mm
4
3
5
5
5
8
8
8
8
C
(KN)
195
235
367
475
566
549
785
785
1.076
d
mm
70
80
110
130
150
140
140
140
170
T
mm
98
115
150
184
187
190
240
240
242
Big size adjustable combined bearings can bear very high loads.
They are mainly used for masts of fork lifts up to 50TN and in steel industry where they are used as a wheel for rolling mills carrying cars.
1. Fey seal rings
2. Support
3. Axial part
4. Outer ring
5. Cylindrical rollers
6. Support thrust ring
7. Inner ring
8. Pivot
9. Fey seal rings
C: Dynamic load
Co: Static load
Ca: Dynamic axial load
Coa: Static axial load
